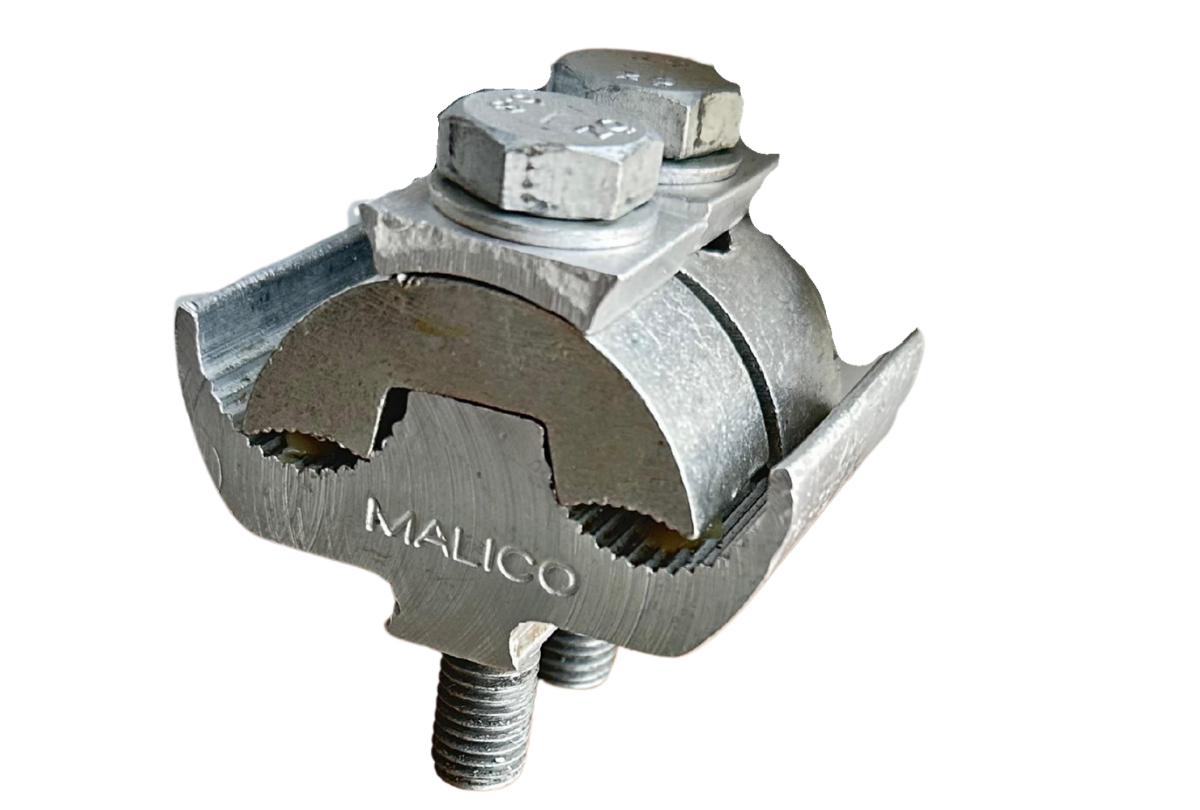

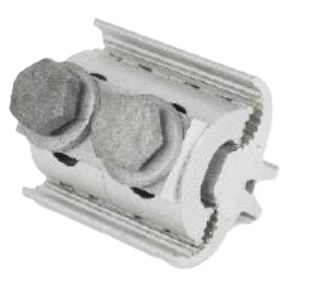

Malico AA branch connectors..
Application:
They are used to make electrical connections of bare aluminum wires.
Construction:
- The body is made of corrosion-resistant aluminum alloy.
- Bolts, nuts and washers are made of hot-dip galvanized steel.
- During assembly, it is possible to support the clamp with a support key.
- Factory brushed and lubricated with contact paste.

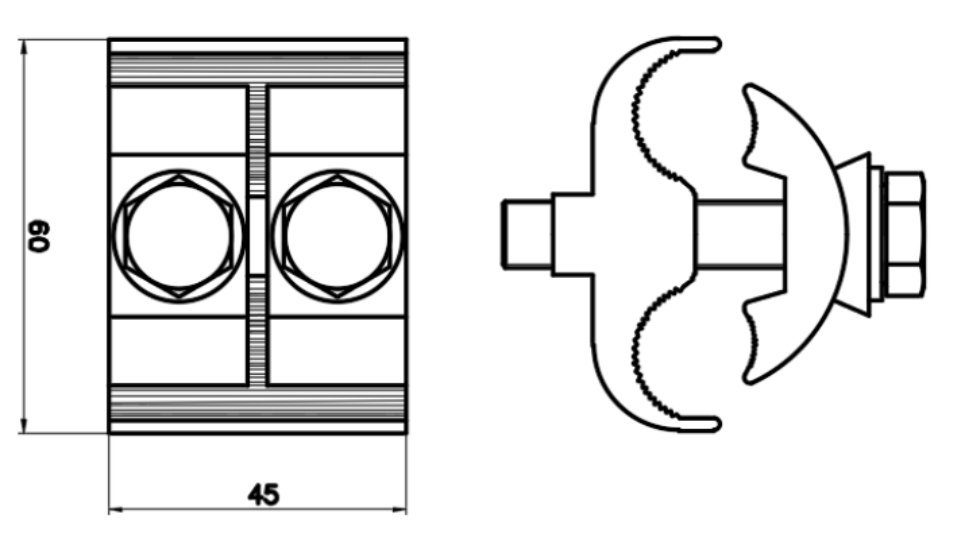

Malico AA-240

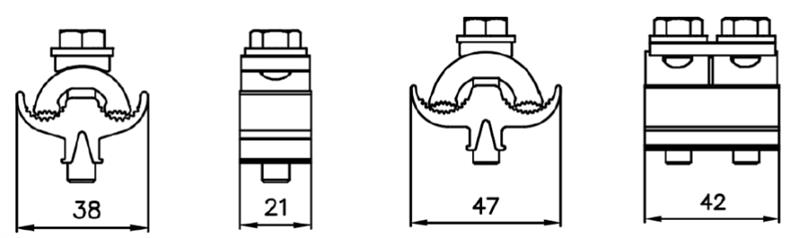

| Symbol | Cable cross-section Al [mm²] | Screw(s) | Tightening torque [Nm] |
|---|---|---|---|
| MALICO AA-95 | 10-95 | 1 × M8 | 20 |
| MALICO AA-150 | 16-150 | 2 × M8 | 20 |
| MALICO AA-240 | 50-240 | 2 × M10 | 44 |
Compliant with standards:
PN-EN 61238-1-1,
PN-EN 61238-1-3,
PN-EN 61284.

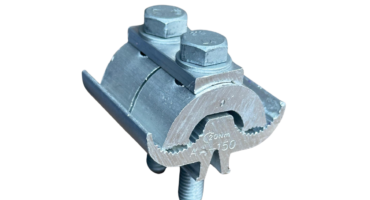

Malico low-voltage terminals
